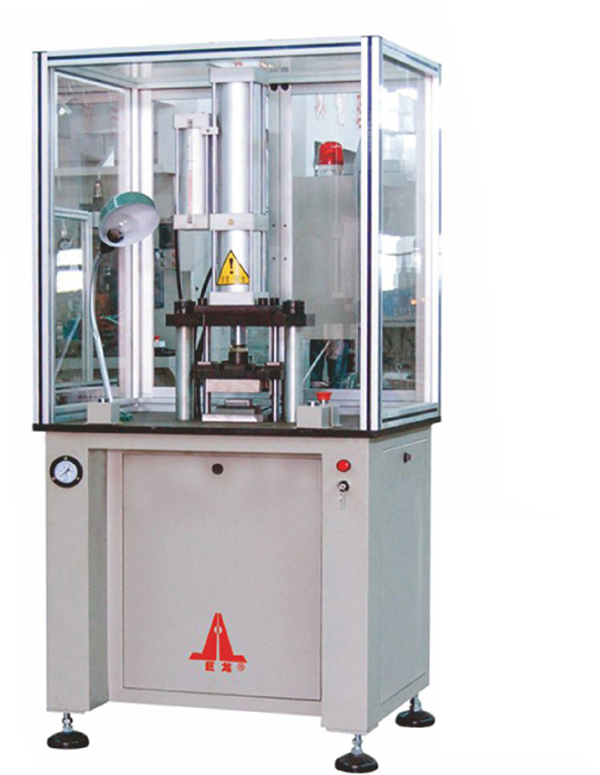

QC-1型磁場線圈成型機
QC-1 Model Magnetic Field Coil Shoping Machine
本機適用于起動電機定子磁場線圈壓制成瓦型的專用設備。采用三菱PLC程控，氣液增壓缸增大壓制力量，并一次壓制成形，自動頂出脫模，操作簡單方便。
Suitable for starter motor stator magnetic field coil pressing into tile-shaped special equipment. Mitsubishi PLC program control, gas-liquid pressurized cylinder to increase the suppression of power, and a compression molding, automatic top out, easy operation.
技術參數/Technicai Parameters
| 電源電壓Supply voltage | AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7Mpa |
|
總功率Total power |
2kw |
| 工作行程Working stroke |
≤100mm |
|
頂出行程Ejection steoke |
30mm |
|
線圈內徑Coil ID |
用戶定制Customized |
| 特殊規格可定制Special specifications can be customized | |
