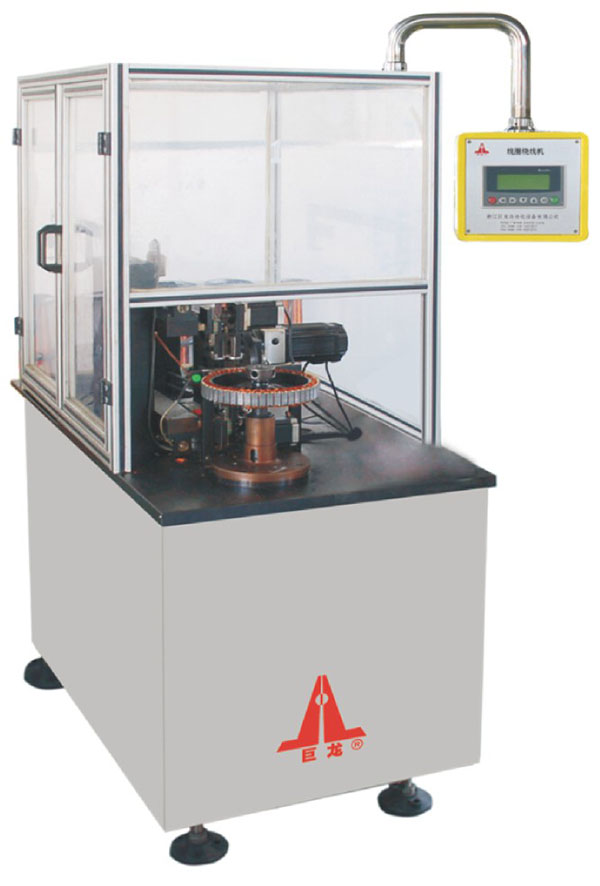

（單工位）ESW-1型 定子繞線機
ESW-1 Electric Bicycle Wire Winding Machine
適用于電動車定子的自動繞線。采用人工放入工件，人工定位、自動分度、仿人工嵌入式繞線、人工剪線、PLC程控、觸摸屏修改參數。
Suitable for the electric bicycle stator automatic winding. Manual put workpiece, manual positioning, automatic indexing. Winding in imitation of manual embedding ,manual cutting wire, PLC , touching screen changing paramters.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
功率Total power |
2kw |
| 定子外徑Stator Outer Diameter | Φ198/Φ266mm |
|
定子疊厚Amature Depth |
14~50mm |
|
可繞線徑Wire Diameter |
0.3~0.6mm |
|
可繞線根數Number of wire |
1-13 |
