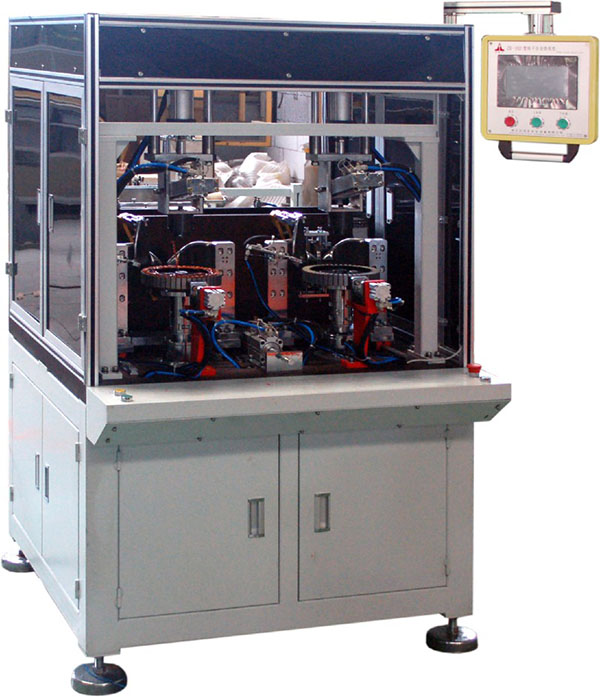

(雙工位自動減夾線)ESW-2S型 雙工位定子繞線機
ESW-2 Model Staor Winding Machine and Embedding Machine
適用于電動車定子的全自動繞線，雙工位設計，人工放入工作，自動定位，自動分度，自動繞嵌線，自動剪夾線，伺服電機及PLC程控，觸摸屏顯示修改參數。
Suitable for electric bicycle stator automatic winding, with two stations design. Manual putting workpiece,automatic positioning,automatic indexing,automatic winding, automatic embedding,automatic cutting wire, PLC, touching scereen changing parameters.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC380V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
功率Total power |
3kw |
| 定子外徑Stator Outer Diameter | Φ198/Φ266mm |
|
定子疊厚Amature Depth |
14-50mm |
|
可繞線徑Wire Diameter |
0.3-0.6mm |
|
可繞線根數Number of wire |
1-13 |
